Small Capacity Fully Automatic Hard Candy Making Machine

Brand Name : OEM

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram

Delivery Time : 15-25days

Packaging Details : Export Standard Packing

Name : Automatic Hard Candy Depositing Line

Dimension(L*W*H) : 6690*700*1400 mm

Power(W) : 30KW

automatic grade : automatic

Material : 304 Stainless Steel

Production capacity : 150-600kg/h

Voltage : 380V

Weight : 5000KG

Feature : High Productivity

Type : Fully Automatic

Contact Now

Small Capacity Fully Automatic Hard Candy Making Machine

1. Introduction of the whole production line:

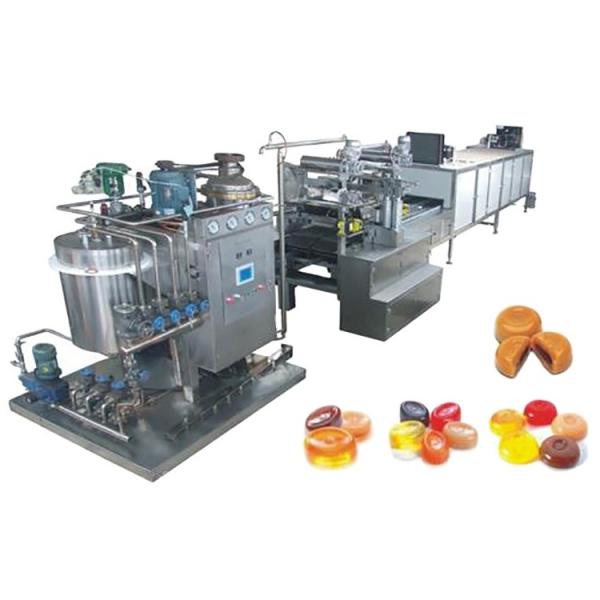

The hard candy production line consists of an electric sugar pot, a cooling table, a heat preservation roller, a drawing machine, a forming machine, a cooling screen and a packaging machine, which can produce round and oval hard candy.The whole production line of electrical integrated control, easy to control the operation, is small and medium-sized ideal equipment for a candy factory.

2. Main technical parameters

Production: 150-500 kg/h

Whole line power: 5.4KW

Full line size :6690*700*1400 mm

3. Main production process

Boil sugar → cool it → roll sugar → pull the jelly into a sugar bar → punch the sugar bar into a round or oval hard candy → cool it → package the finished product

Model HNOC-150 HNOC-300 HNOC-450 HQ-600
standard production volume(kg/hour) 150 300 450 600
The sugar levels 2-6g 2-6g 2-6g 2-6g
pouring rate 45-55n/min 45-55n/min 45-55n/min 45-55n/min
Steam demand 0.2m³/min,
0.4-0.6Mpa		 0.2m³/min,
0.4-0.6Mpa		 0.2m³/min,
0.4-0.6Mpa		 0.2m³/min
,0.4-0.6Mpa
Work environment requirements Temperature:20-25℃
humidity :55%		 Temperature:20-25℃
humidity :55%		 Temperature:20-25℃
humidity :55%		 Temperature:20-25℃
humidity :55%
Total Power 18kw/380V 27kw/380V 34kw/380V 38kw/380V
Overall length 15m 17m 17m 20m
Overall weight 3500kg 4000kg 4500kg 5000kg

Small Capacity Fully Automatic Hard Candy Making MachineSmall Capacity Fully Automatic Hard Candy Making Machine
